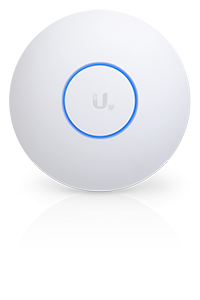

UniFi AP SHD
Series Type: UniFi
Website Link: AP SHD
Model: UAP-AC-SHD
Type: 802.11AC Wave 2 Access Point with Dedicated Security Radio
Description: Deploy the UniFi SHD AP in high-density environments
requiring maximum wireless performance. The UniFi SHD
AP features simultaneous, dual-band, 4x4 MU-MIMO
technology and convenient 802.3at PoE+ compatibility.
Specifications
| UAP‑AC‑HD | |
|---|---|
| Dimensions | 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89") |
| Weight | 700 g (1.54 lb) |
| With Mounting Kits | 830 g (1.83 lb) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Method | 802.3at PoE+ |
| Supported Voltage Range | 44 to 57VDC |
| Power Supply | UniFi Switch (PoE) |
| Power Save | Supported |
| Maximum Power Consumption | 20W |
| Maximum TX Power | |
| 2.4 GHz | 6-25 dBm |
| 5 GHz | 6-25 dBm |
| Antennas | (2) Dual-Port, Dual-Polarity Antennas, , 2.4 GHz: 6 dBi each, 5 GHz: 6 dBi each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Hardware | |
|---|---|
| Instruction set | MIPS |
| Vendor | Qualcomm / Atheros |
| Bootloader | ? |
| System-On-Chip | IPQ8064 |
| CPU Frq | ? |
| BogoMIPS | 2517.81 |
| Flash-Chip | ? |
| Flash size | ? |
| RAM-Chip | Winbond W632GU6KB-12 |
| RAM size | 256 MiB |
| Wireless 1 (2.4 GHz) | QCA9994 |
| Wireless 2 (5 GHz) | QCA9994 |
| Wireless 3 (2.4 GHz / 5 GHz) | QCA9889 |
| Bluetooth (2.4GHz) | CSR8811 |
| Eth Phy | AR8033-AL1A |
| USB | 3.0 (Type-C) |
| Serial | ? |
| Advanced Traffic Management | |
|---|---|
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1000+ |
| Supported Data Rates (Mbps) | |
|---|---|
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
LED Status Light Ring
- Blue Ring - Solid
- Normal Operation
- White Ring - Flashing
- Unconfigured state
Troubleshooting tips
- No light/power
- Check ethernet connection.
- Are you connected to a PoE enabled switch or PoE injector?
- Does the switch/injector have power?
- Can only connect to the primary/default VLAN
- Check that your switch port has all VLANs enabled (Try cycling the port through 'Disabled')
FAQ
- How many networks can I run off of this one AP?
- Up to 8 per Radio
- Does this AP come with a PoE injector for use on a non-PoE enabled switch?
- No, it is recommended to use them with a PoE enabled switch like the UniFi Switch 8-150W or better.
