Series Type: UniFi
Website Link: UCK-G2

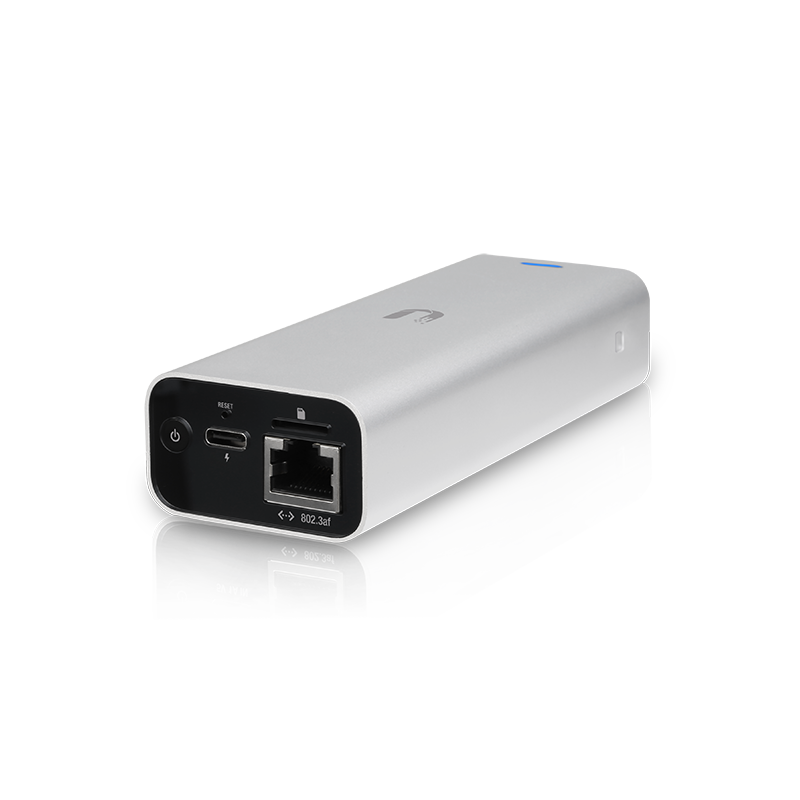

Model: UCK-G2
Type: UniFi Application Server

Description: Manage your UniFi network with the new, more powerful UniFi Cloud Key G2. Configure your network in minutes with Bluetooth setup from the UniFi mobile applications. The new front panel display shows important network status information at a glance. A built-in battery provides protection against power loss.

  • Unordered List Item4X more powerful than the original Cloud Key
  • Easy Bluetooth setup with UniFi mobile app
  • Powered by 802.3af PoE or USB-C
  • Built-in battery for automatic safe shutdown
  • Front panel display for at-a-glance network details
UCK-G2
Dimensions 27.10 x 46.80 x 119.75 mm (1.07 x 1.84 x 4.71”)
Weight 150 g (5.29 oz)
Enclosure Anodized Aluminum
Processor APQ8053
Memory 2 GB
eMMC Memory 32GB
Networking Interface Gigabit Ethernet, 802.3af PoE
Buttons Power button, reset button
Power method Standard 802.3 af PoE, DC 5V 1A Powered
Max. Power Consumption 5W (PoE/Adapter)
Operating Temperature 0 to 35° C (32 to 104° F)
Operating Humidity 20 to 80% Noncondensing
Certifications FCC, CE, IC


G2 vs G2-PLUS

  1. the regular G2 does not host the video controller.
  2. NOTE: There may be other unconfirmed changes.
