UniFi Dream Machine Pro
Series Type: UniFi Dream Machine
Website Link: UniFi Dream Machine Pro
Model: UDM-Pro
Type: Enterprise Gateway Router with 10gb WAN & LAN
Description: The UniFi Dream Machine Pro is a powerful unified enterprise network appliance. It integrates software – the UniFi Network Controller and UniFi Protect video surveillance – with all-in-one hardware featuring a high-performance security gateway with a built-in switch and hard drive bay.
Features
- 8-Port gigabit switch with 10G SFP+ port
- Dual WAN ports for redundancy and load balancing: 10G SFP+ and 1G RJ-45
- Bluetooth connectivity for easy setup via UniFi app
- Scalable UniFi Network Controller with advanced management capabilities
- UniFi Protect video surveillance NVR with 3.5" (or 2.5") HDD support
- Enterprise-class IPS/IDS and DPI capabilities
- 1 x 1.3" Touchscreen display for quick status information
- Powered by fast 1.7 GHz quad-core processor
UniFi Dream Machine Platform Notes
- UDM appliances have built in UniFi controllers and cannot be adopted by external controllers.
- Multiple sites are no longer supported on UDM platforms.
- The built-in 8 port switch supports non-blocking throughput of 16 Gbps (1Gbps full duplex across all ports), but only has a 1 Gbps CPU uplink.
- Inter-VLAN routing throughput is limited to 1Gbps.
- Intra-VLAN throughput is line-rate.
- The 2.5Gbps link only applies to rev3.1–not newer revisions.
Hardware Revisions
Revision | Feature / Changes |
---|---|
3.1 | initial release |
8 Port switch has 2.5Gbps uplink to CPU | |
SFP+ WAN and LAN are in same speed group | |
5 | 8 Port switch moved to a 1Gbps uplink to CPU |
SFP+ WAN and LAN decoupled to allow for individual speeds | |
8 | *pending change log* |
10 | Build quality and material changes. |
12 | *pending change log* |
25 | Revision found in field, unknown changes |
Specifications
UDM-PRO | |
---|---|
Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
Weight With Mount Brackets | 3.90 kg (8.60 lb) 3.99 kg (8.80 lb) |
Max. Power Consumption | 33W |
Power Supply | Internal 50W/12V |
Power Input | (1) Universal AC Input, 100 to 240VAC (1) RPS DC Input |
LEDs | |
Display | 1.3" Color Touch Panel |
System | Status |
HDD | Activity |
RJ45 | Link/Speed/Activity |
SFP+ | Link/Speed/Activity |
Networking Interfaces | |
Serial Console Port | None |
Data Ports | (8) 10/100/1000 RJ45 LAN Ports |
(1) 10/100/1000 RJ45 WAN Ports | |
(1) 1/10G SFP+ LAN Port | |
(1) 1/10G SFP+ WAN Port | |
(0) Power Over Ethernet Ports | |
Layer 3 Forwarding Performance | |
Packet Size: N/A | N/A |
IPS/IDS Enabled Throughput | approx 3.5 Gbps |
IPS/IDS Disabled Throughput | approx 9 Gbps |
Processor | AnnapurnaLabs Alpine AL-324 ARM® Cortex-A57 quad-core 1.7GHz processor |
System Memory | 4 GB DDR4 |
On-Board Flash Storage | 16 GB eMMC |
User Replaceable Hard Drive (not included) | (1) 3.5" or (1) 2.5" SATA 3 |
Certifications | CE, FCC, IC |
Rackmount | Yes |
Operating Temperature | -10 to 40° C (14 to 104° F) |
Operating Humidity | 5 to 95% Noncondensing |
ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
Getting Started
- Since 1.8 Protect is automatically installed and won't need hard drive to run. Without hard drive you can adopt cameras and check video feed but no recording features are available.
Known Issues
Prior to 1.0.26 firmware, the LCM Module did not function and would continually cycle the Ubiquiti logo. Beginning with 1.0.26, the LCM is functional, albeit with limited functionality. Information displayed (as of this update) is not necessarily accurate.WAN SFP+ port does not currently NAT traffic, you must use the RJ45 port for upstream WAN connectivity.PPPoE & NAT issues are currently being troubleshooted by Ubiquiti staff.Multi-WAN is not an option currently.Restoring a backup, whether from an external controller or even the same UDM is not yet functional, as of 1.0.26 and prior.Applying new settings to the UDM-Pro could interrupt WAN connectivity for approximately 2 seconds.- Speed Tests run from the controller on the UDM-Pro show inflated numbers and are not reliable at this time.
Troubleshooting tips
High RAM usage, or kswapd using too much CPU This is likely due to Java and/or Mongod using too much memory
- You can reboot the entire UDMP , or
unifi-os restart
which will restart the container running the controllersunifi-os shell
andetc/init.d/unifi restart
then to restart the controller directly.
Log file locations are located in the following places
- /var/log/messages
- /mnt/data/log
- Additionally the executable oopsdump can be run to retrieve log files.
- You can also execute the following command to TAR all logs that might be helpful for Ubiquiti -
tar -czvf /mnt/data/logs.tar.gz /mnt/data/log/*
SSH information
- Username = root
- Password = Your UI account password used when you setup the device.
- NOTE: Changing your UI SSO password will update for authentication to the controller, but will NOT change the device SSH credentials. This means that it will continue to be the password you used when setting up the device.
Resources
1)

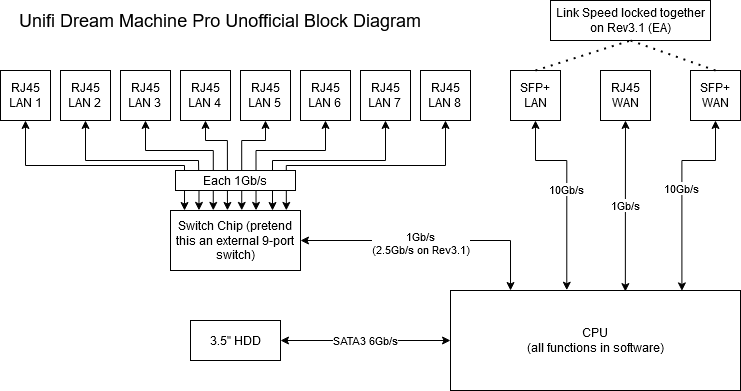

This image can be uploaded to diagrams.net to make changes
