THIS IS AN EARLY ACCESS DEVICE!!
NOT for install.
NOT for bidding on upcoming jobs.
NOT for production use.
Use at your own risk and please let Ubiquiti know if you find issues.

Series Type: UniFi
Website Link: Early Access UniFi Switch Leaf

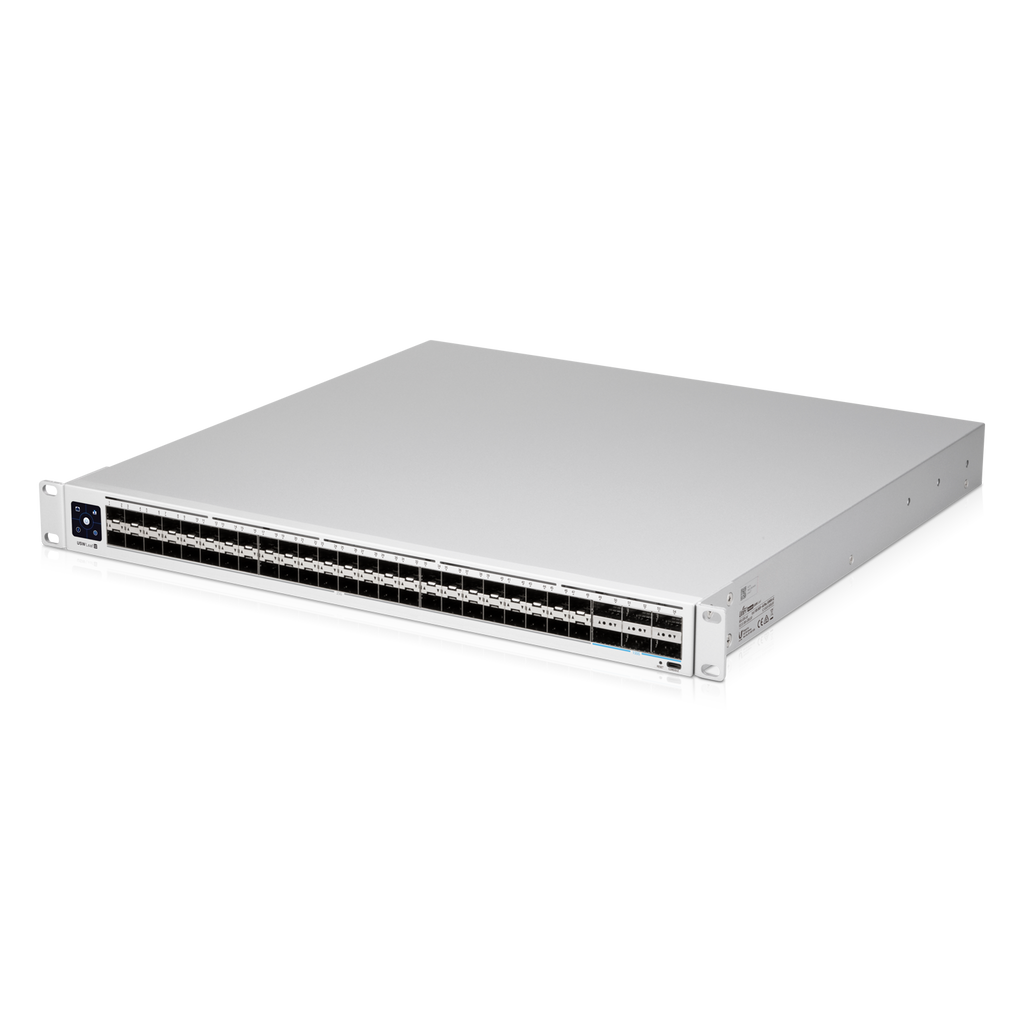

Model: USW-Leaf
Type: Managed Switch

Description: The UniFi Switch Leaf is a high-performance, 100G intelligent switch designed for the data center and high-capacity enterprise environments. It supports a range of interface speeds with forty-eight 10G/25G SFP28 ports and six 40G/100G QSFP28 ports to efficiently provide high-bandwidth connectivity to your spine switches and across your access network. With 1.8 Tbps switching capacity and 350W maximum fully equipped switch power consumption, the UniFi Switch Leaf delivers industry-leading value per port and excellent power efficiency.

  • (48) 10G/25G SFP28 ports
  • (6) 40G/100G QSFP28 ports
  • 3.6 Tbps Switching capacity (full duplex)
  • Layer 2 features, including 802.1D/w/s, 802.1Q VLAN, and 802.3ad LACP
  • Layer 3 features, including OSPF 2/3, BGP 4, PBR, ECMP, and VxLAN
  • Redundant 1+1 power supplies for high availability
  • Redundant 4+2 fans with front-to-rear air flow for reliable cooling
  • 1.7 GHz quad-core ARM Cortex-A57 processor
  • 1.3" color touchscreen display for instant system information
  • Bluetooth for fast setup using UniFi Network app
  • Managed by UniFi Network Controller via GUI or CLI (USB Type-C console)
  • 1U rackmountable (kit included - Brackets and Rails)

Specifications are subject to change while in Early Access

USW-Leaf
Dimensions 442.4 x 440 x 43.7 mm
(17.42 x 17.32 x 1.72")
Weight
• With Rackmount Brackets
7.5 kg (16.5 lb)
8.5 kg (18.7 lb)
Interfaces
• Networking

• Management
(48) 10/25G SFP28 Ethernet Ports
(6) 40/100G QSFP28 Ethernet Ports
(1) Bluetooth BLE
(1) USB Type C Port Out-of-Band
Power Method 100-240VAC, 4A Max, 50/60 Hz, x 2
Power Supply (2) AC/DC, Internal 350W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption
• Excluding SFP28/QSFP28 Modules
• Including Full SFP28/QSFP28 Modules
175W
350W
